Gearless Transmission Using Elbow Mechanism
Compact, efficient gearless power transmission mechanism utilizing a 90-degree elbow link for smooth continuous power transmission without gears, belts, or chains.
Project Overview

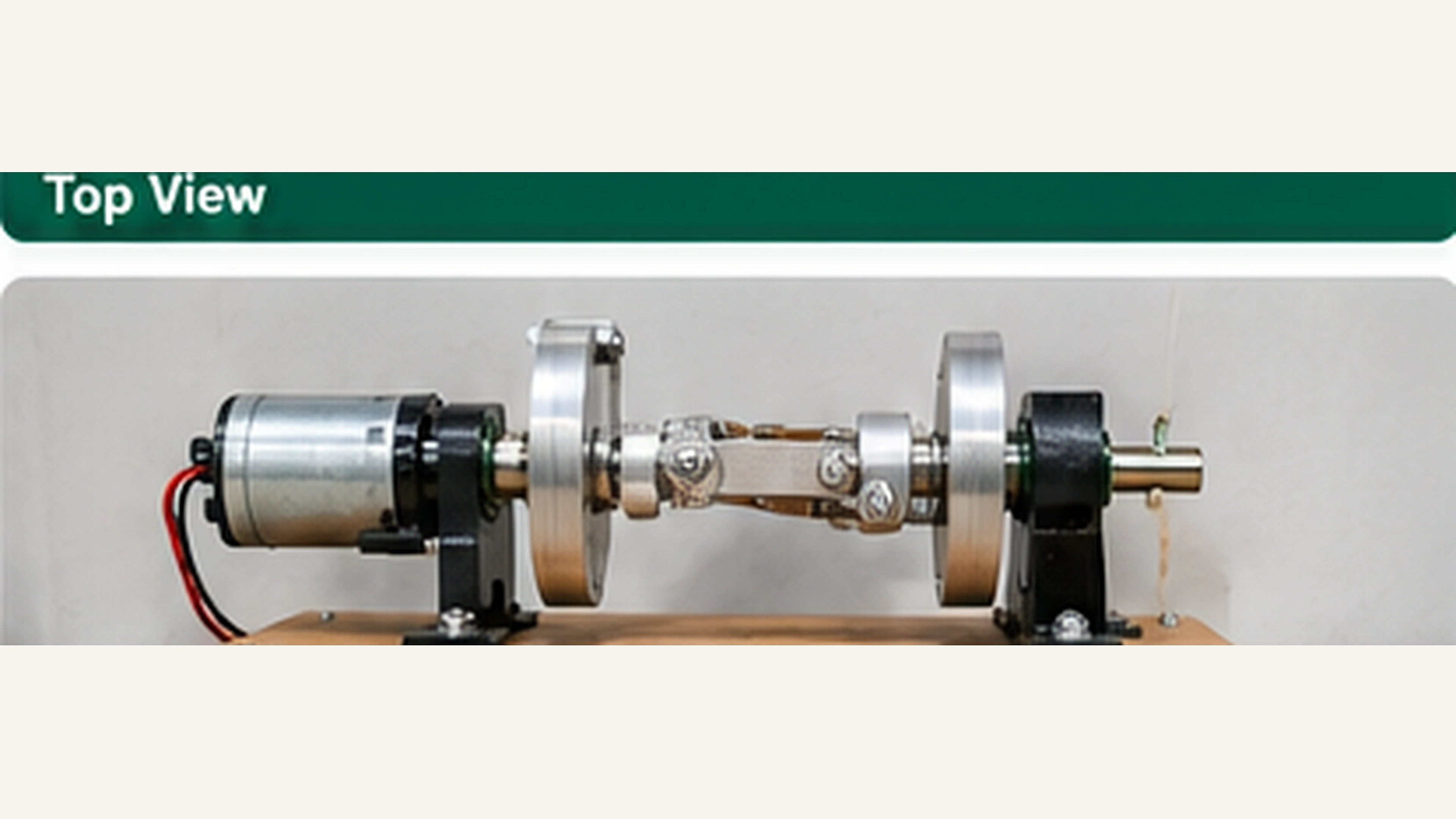

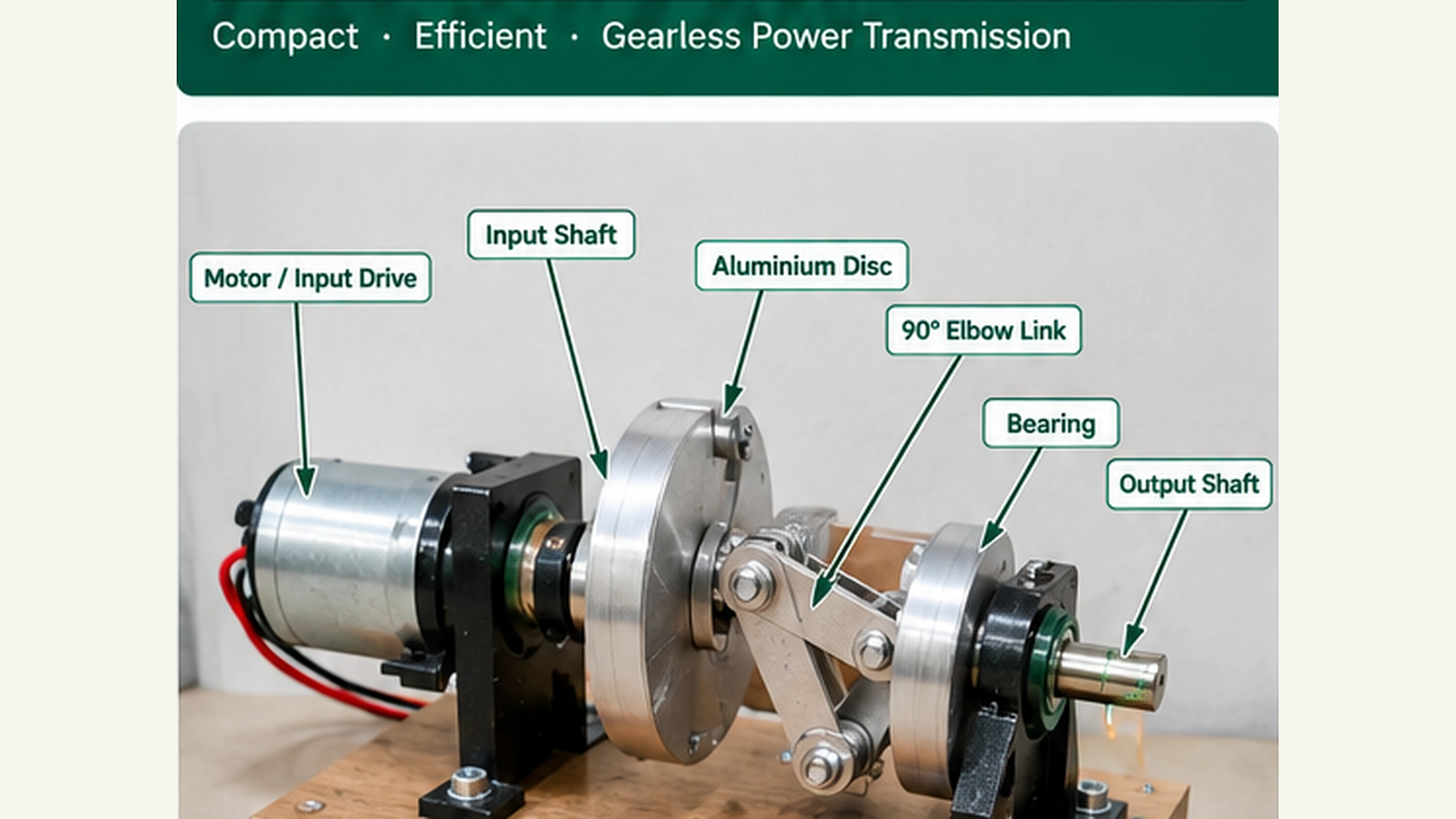

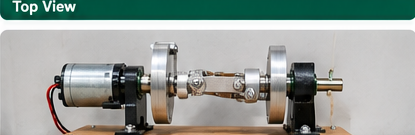

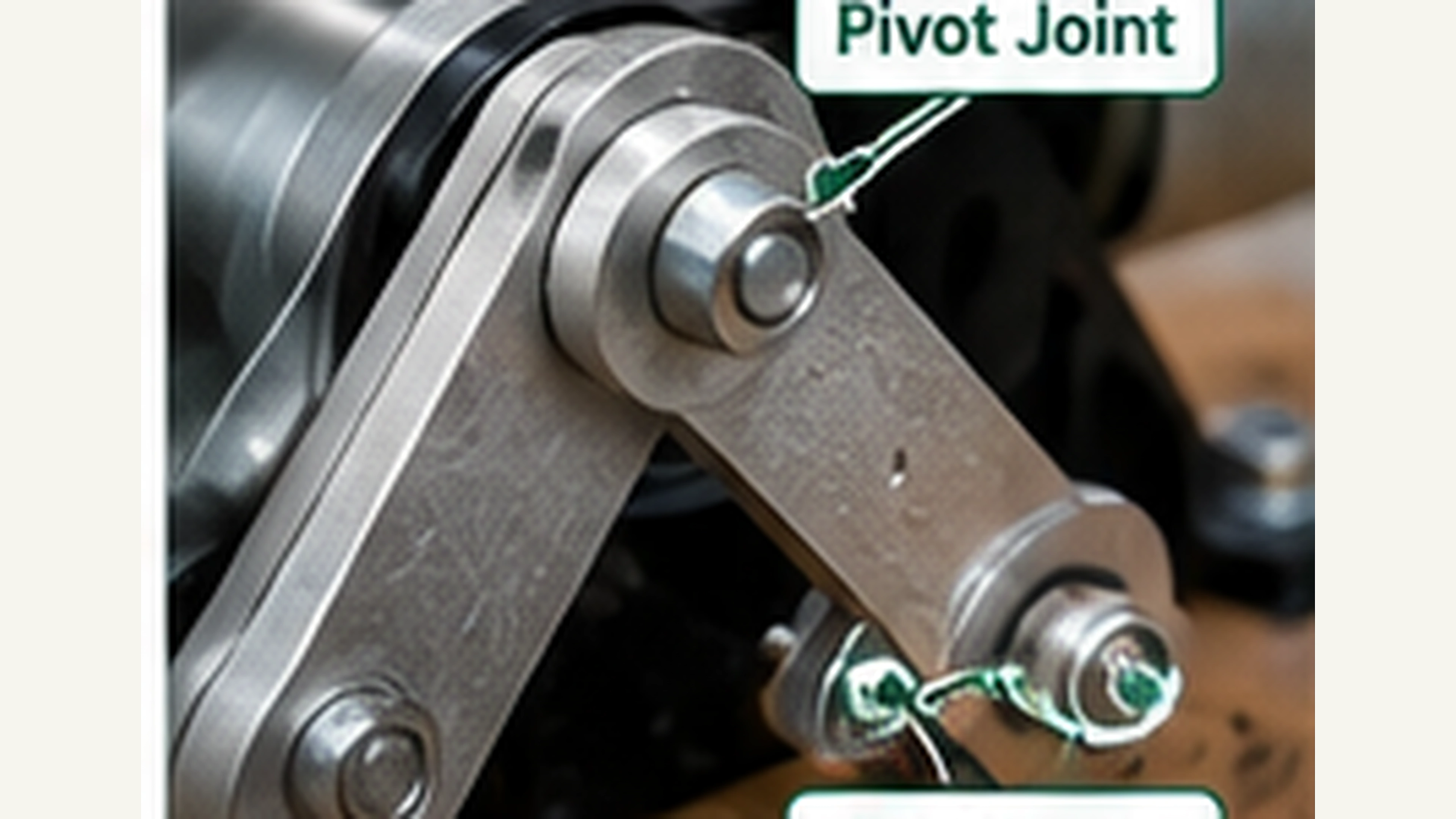

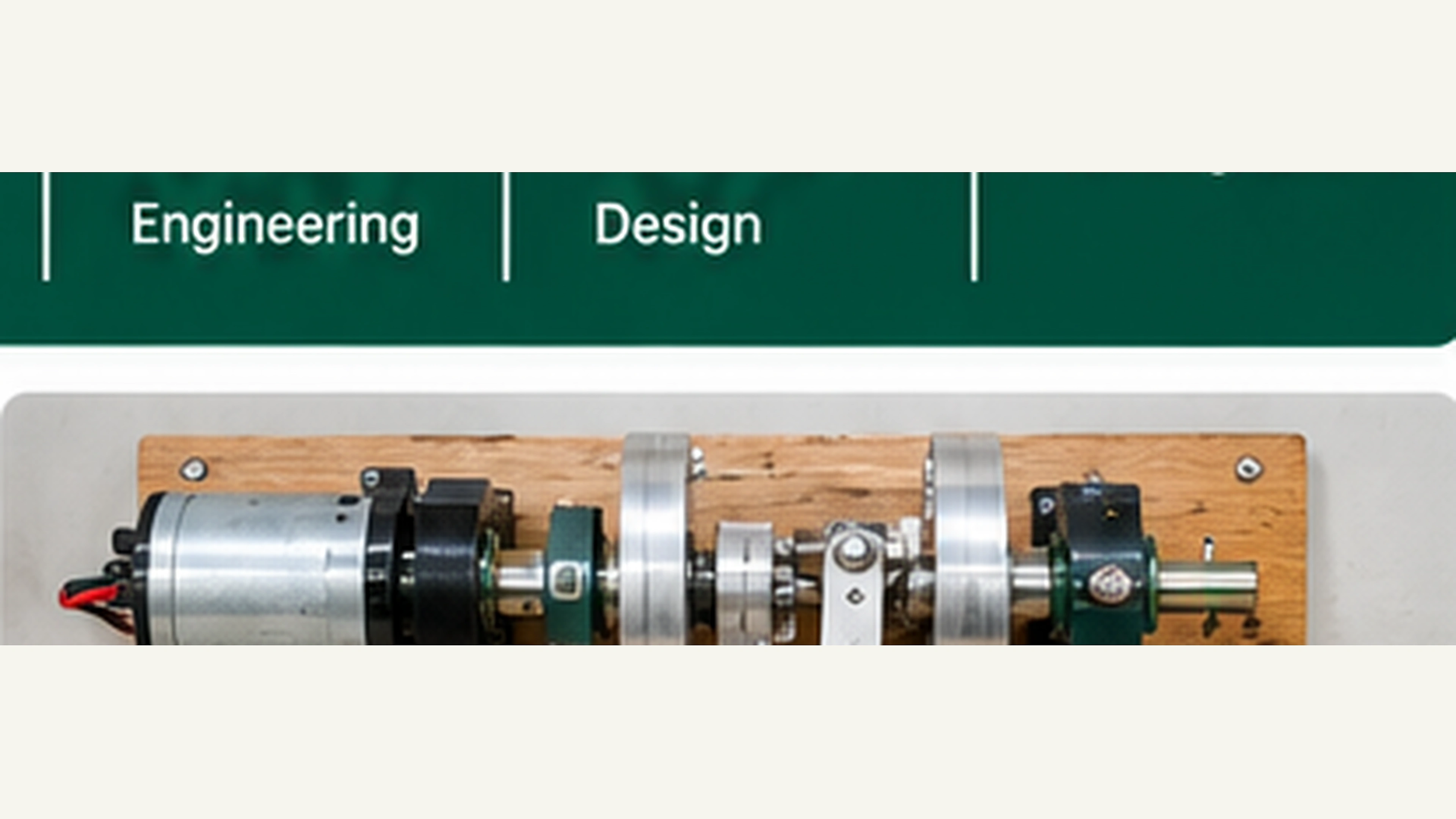

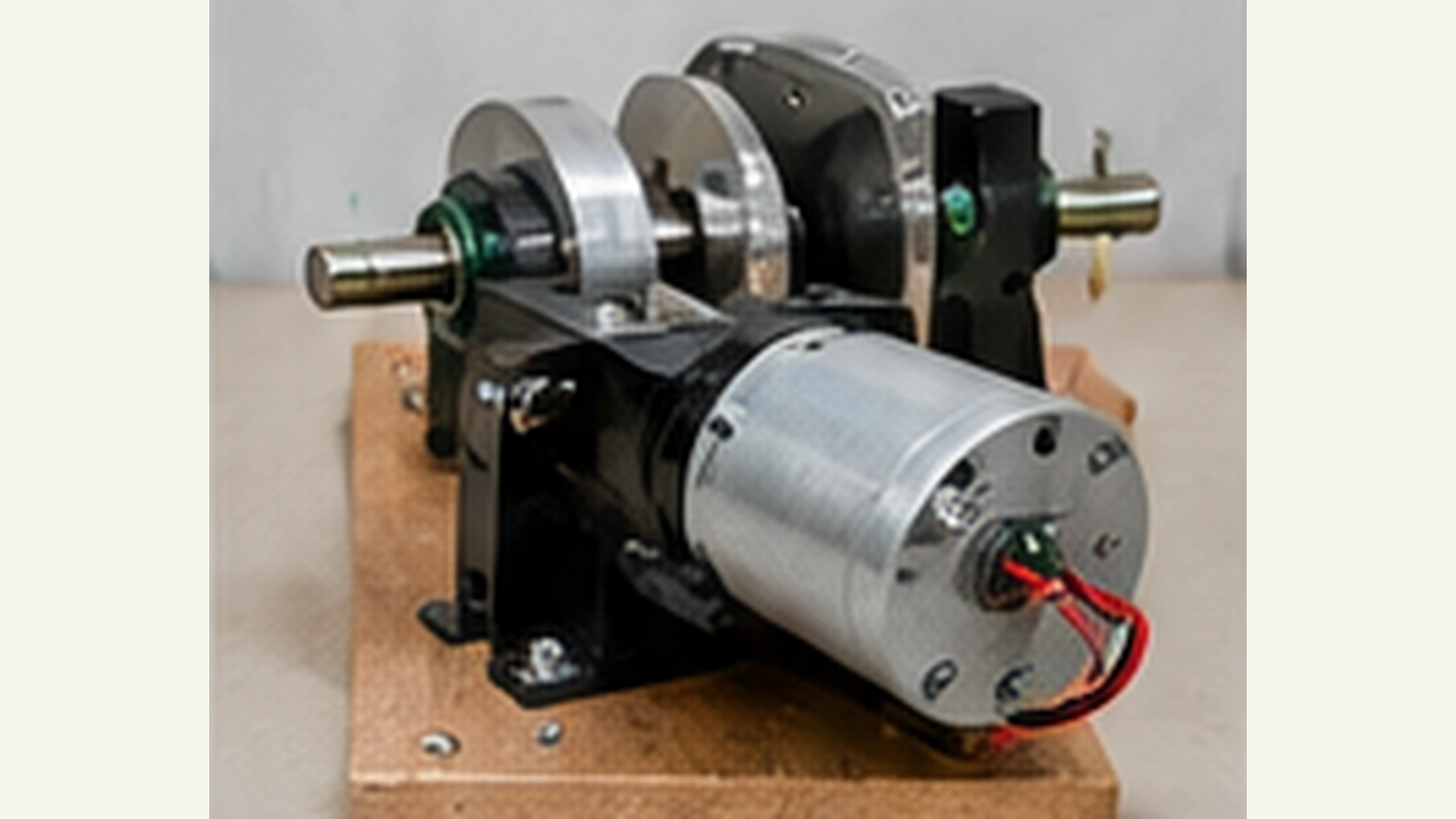

To design and fabricate a gearless transmission system using an elbow mechanism for smooth and continuous power transmission with high efficiency and low maintenance. The motor rotates the input shaft, which drives the aluminium disc. The 90° elbow link converts the rotary motion into a reciprocating motion and back to rotary motion at the output shaft.
To design and fabricate a gearless transmission system using an elbow mechanism for smooth and continuous power transmission with high efficiency and low maintenance. The motor rotates the input shaft, which drives the aluminium disc. The 90° elbow link converts the rotary motion into a reciprocating motion and back to rotary motion at the output shaft.
Compact, efficient gearless power transmission mechanism utilizing a 90-degree elbow link for smooth continuous power transmission without gears, belts, or chains.
